Summary

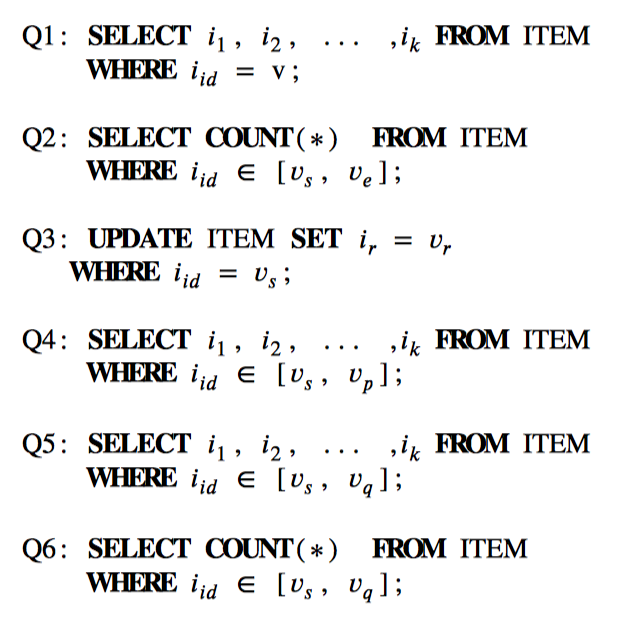

There is no open-source micro-benchmark for HTAP databases. The micro-benchmark could precisely regulate the read/write ratio for a comprehensive evaluation of HTAP databases. Therefore, we mimic the ADAPT and HAP benchmarks to design and implement the micro-benchmark, which accomplishes the six queries listed below. Moreover, the micro-benchmark contains a single table with 59 attributes named ITEM. The attributes in the ITEM table are derived from the actual e-commerce applications.
Motivation
Micro-benchmarks can control the rate at which fresh data is generated and the granularity of access, which distinguishes them from macro-benchmarks. Fig. 1 compares the impact of simple write operations and the New-Order transaction on the measurement of data freshness. The New-Order transaction includes an excessive number of updating and inserting operations, thereby introducing data synchronization that is unnecessary for measuring data freshness. The greater the ratio, the more data needs to be synchronized. It demonstrates that the tail latency of analytical queries (Baseline) increases approximately onefold when the micro-benchmark is used to simulate write interference. The New-Order transaction contains numerous inserting and updating operations, so the tail latency of the baseline (Q6) increases by more than 36 times when OLxPBench is used. The greater the number of inserting and updating operations, the greater the number of data updates that must be synchronized between transactional and analytical instances. However, not all data updates resulting from online transactions are required for analytical queries. The data freshness measurement will be affected by data updates that are not required by the analytical query. Measuring data freshness requires precise control over the rate of fresh data generation and access granularity.
Figure 1: This figure reveals that the micro-benchmark can accurately measure the real-time analytical capabilities of the HTAP database by controlling read and write interference.
Range Setting Method

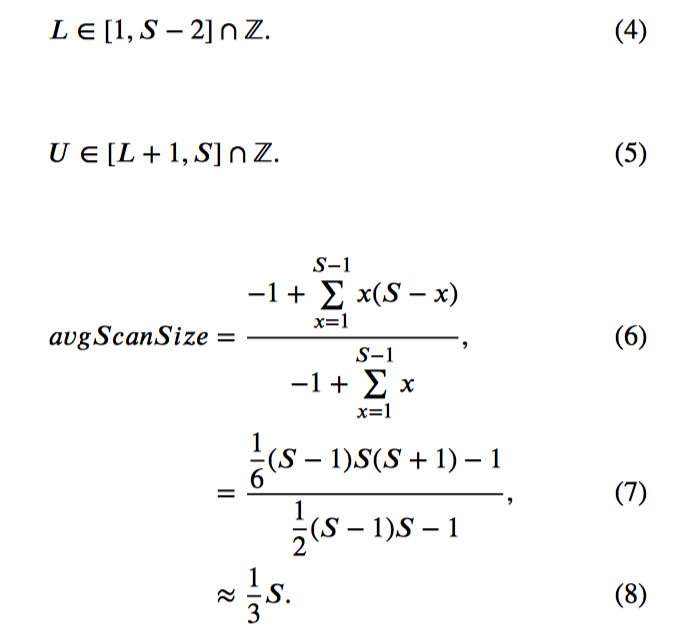

Informed by a theoretical framework, the parameters of a scan query range are thoughtfully established. We start by supposing that the total count of records in a table is represented as 𝑆. The range for this operation is defined between two integer values, a lower bound 𝐿, and an upper bound 𝑈. As described in Equations 4 and 5, the boundaries of 𝐿 and 𝑈 are established with the essential stipulation that 𝐿 must always remain less than 𝑈. The desired range for our scan query is the calculated difference between 𝑈 and 𝐿. Our ultimate aim is to determine the average range, and then to utilize this average as a pivotal point. Upon establishing this pivotal point, we then select scatter points of several orders of magnitude beneath it to determine the scan query range. A key strategy in achieving this objective involves a recalibration of the range values, effecting a transformation into a summation of multiple terms by increasing them by 1. This process is illustrated in Equation 6. Following this, we examine the pattern of the data, accumulate the range values, and then divide this sum by the number of range values. This leads us to the determination of the average range, as proximate value of the average range in this random configuration is equivalent to one-third of 𝑆, as demonstrated in Equation 8.
Workloads
Based on the range setting method, we establish the range of the scan query to fall within the parameters of 0.5% and 10% of the total record count, 𝑆. Aggregate and scan queries exhibit the capacity to meticulously regulate the granularity of access to fresh data by expertly delineating the scope of the inquiry. This stands as a distinguishing hallmark, setting micro-benchmarks apart from conventional HTAP benchmarks. Q1 is a point-get query retrieves the record where the primary key equals a random number. Q4 is a small-range scan query that randomly retrieves 0.5% of the records. Q5 is a large-range scan query that randomly retrieves 10% of the records. Q3 is an update query that updates the specific value of a random record. HTAP database indexing and writing speeds can be measured with Q1, Q4, Q5, and Q3. Q2 is an aggregate query that counts the records in a random range. Q6 is a small-range aggregate query that counts 0.5% of the records. Q2 and Q6 are useful to measure the OLAP performance of HTAP databases.
Contributors
Guoxin Kang, ICT, Chinese Academy of Sciences
Simin Chen, ICT, Chinese Academy of Sciences
Hongxiao Li, ICT, Chinese Academy of Sciences
